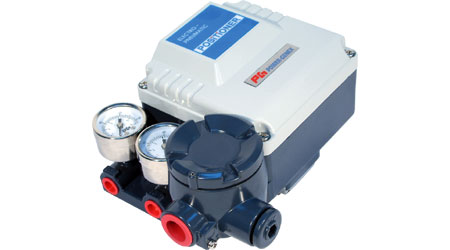

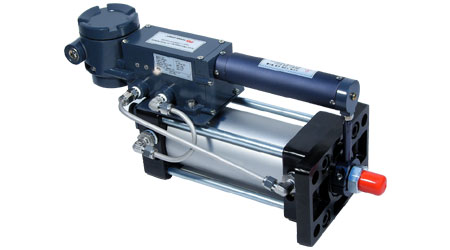

EPL (Linear Type)
Introduction
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
Easy maintenance
Precise calibration with simple SPAN and ZERO adjustments
Simple conversion to direct acting or reverse acting
1/2 split range available
Rugged aluminum housing with corrosion-resistant coating
Vibration resistant design
Stainless steel gauges standard
Restricted pilot valve orifice kit for small actuators included
Certified for ATEX Eex md IIB T5 (05 ATEX 1076X) by NEMKO in conformance with EN 50014:1997, EN 50018:2000 and EN 50028:1987
Certified for EMC (K1046/E04) in conformance with EN 61000-6-2:2001 and EN 61000-6-4:2001 by RWTUV
Certified for Ex md IIB T6 (99-1075-Q1), Ex md IIC T6 (2000-1057-Q1), and Ex ia IIB T6 (2000-1056-Q1) by KOSHA
Option
Position transmitter (4 ~ 20
![](./images/+ma.gif)
output signal)
High temperature
Order Code for EPL (Linear Type)

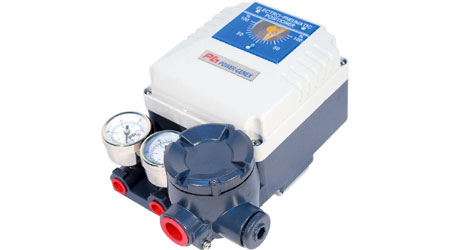

EPR (Rotary Type)
Introduction
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
Easy maintenance
Precise calibration with simple SPAN and ZERO adjustments
Simple conversion to direct acting or reverse acting
1/2 split range available
Rugged aluminum housing with corrosion-resistant coating
Vibration resistant design
Stainless steel gauges standard
Restricted pilot valve orifice kit for small actuators included
Order Code for EPR (Rotary Type)

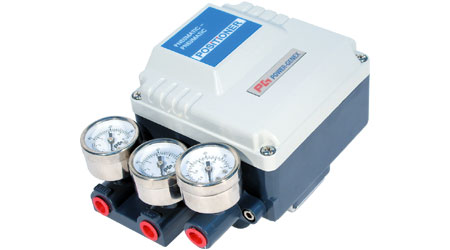

PPL (Linear Type)
Introduction
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
Easy maintenance
Precise calibration with simple SPAN and ZERO adjustments
Simple conversion to direct acting or reverse acting
1/2 split range available
Rugged aluminum housing with corrosion-resistant coating
Vibration resistant design
Stainless steel gauges standard
Restricted pilot valve orifice kit for small actuators included
Order Code for PPL (Linear Type)

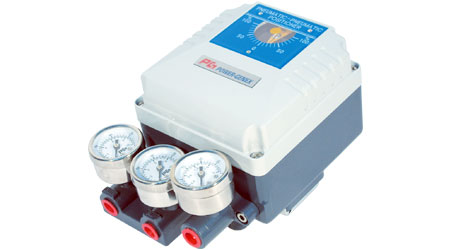

PPR (Rotary Type)
Introduction
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
Easy maintenance
Precise calibration with simple SPAN and ZERO adjustments
Simple conversion to direct acting or reverse acting
1/2 split range available
Rugged aluminum housing with corrosion-resistant coating
Vibration resistant design
Stainless steel gauges standard
Restricted pilot valve orifice kit for small actuators included
Order Code for PPR (Rotary Type)

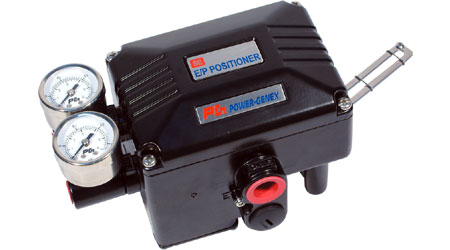

SEL (Linear Type)
Introduction
Reliable valve control device guaranteeing optimum span and zero settings by smart auto-calibration function
Features
Auto-calibration for optimum zero and span setting
Simple and easy to set
Precise control performance and high dynamic response
Pressure regulator built in to eliminate variations in supply air pressure
Low air consumption due to piezo electric microvalve
Input/output signal isolated
Automatic detection for DA(direct acting) or RA(reverse acting)
Single and double acting available
No hunting on the small actuators
1/2 split range available
High resistance against shock and vibration
Order Code for SEL (Linear Type)

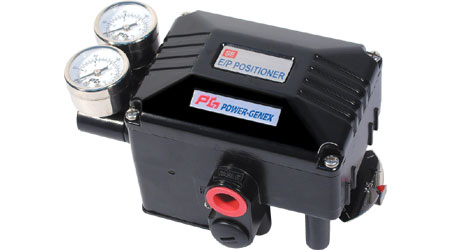

SER (Rotary Type)
Introduction
Reliable valve control device guaranteeing optimum span and zero settings by smart auto-calibration function
Features
Auto-calibration for optimum zero and span setting
Simple and easy to set
Precise control performance and high dynamic response
Pressure regulator built in to eliminate variations in supply air pressure
Low air consumption due to piezo electric microvalve
Input/output signal isolated
Automatic detection for DA(direct acting) or RA(reverse acting)
Single and double acting available
No hunting on the small actuators
1/2 split range available
High resistance against shock and vibration
Order Code for SER (Rotary Type)

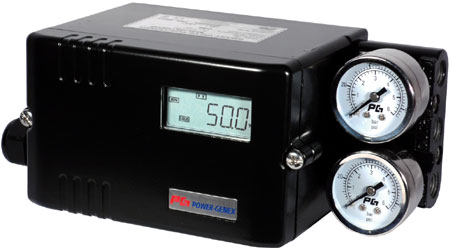

SS5 Linear/Rotary
Introduction
FAIL FREEZE POSITIONER
Perfect combination with reliable fail freeze function and smart performance
with innovative durable coil drive
Features
![](./images/+inch.gif)
Fail Freeze
![](./images/+inch.gif)
function to help the valve stay at the last position on the loss of the electrical power supply
Easy and quick auto-calibration, Low air consumption
Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
Available to use for single or double acting without any special adjustments
Providing error messages against performance failures
Possible to test the actuator with any fixed signal under a test mode
Programmable characteristic curve with 17 points
Wide operating temperature range -30 ~ +80
![](./images/+c.gif)
Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
Order Code for SS5 Linear/Rotary

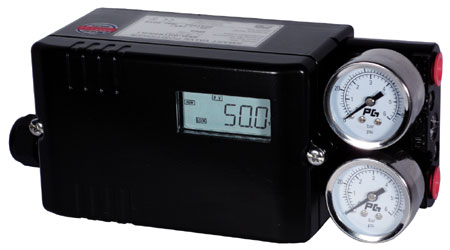

SS2 Linear/Rotary
Introduction
Smart performance with innovative and ever-strong coil module even under harsh working environments
Features
Easy and quick auto-calibration, Low air consumption
Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
Available to use for single or double acting without any special adjustments
Compact design allowing to be installed on small actuators
Providing error messages against performance failures
Possible to test the actuator with any fixed signal under a test mode
Programmable characteristic curve with 17 points
Wide operating temperature range -30 ~ +80
![](./images/+c.gif)
Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves
Order Code for SS2 Linear/Rotary

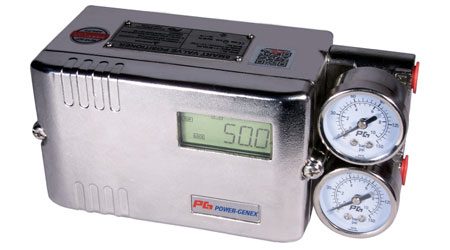

SS2S Linear/Rotary
Introduction
Stainless steel 316, Smart performance with innovative and ever-strong coil module even under harsh working environments
Features
Easy and quick auto-calibration, Low air consumption
Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
Available to use for single or double acting without any special adjustments
Compact design allowing to be installed on small actuators
Providing error messages against performance failures
Possible to test the actuator with any fixed signal under a test mode
Programmable characteristic curve with 17 points
Wide operating temperature range -30 ~ +80
![](./images/+c.gif)
Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves
Order Code for SS2S Linear/Rotary

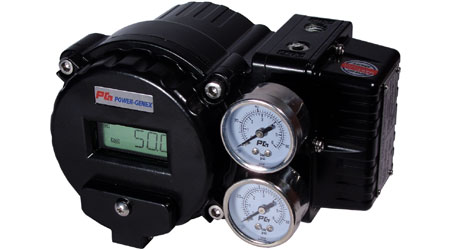

SS3 Linear/Rotary
Introduction
Smart performance with flameproof enclosure and innovative and ever-strong coil module even under harsh working environments
Features
Easy and quick auto-calibration, Low air consumption
Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
Available to use for single or double acting without any special adjustments
Compact design allowing to be installed on small actuators
Providing error messages against performance failures
Possible to test the actuator with any fixed signal under a test mode
Programmable characteristic curve with 17 points
Wide operating temperature range -30 ~ +75
![](./images/+c.gif)
Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves
Order Code for SS3 Linear/Rotary

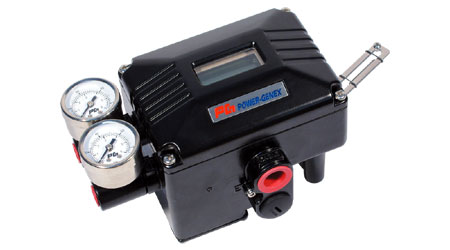

SSL (Linear Type)
Introduction
Smartest valve control device meeting a dynamic performance and a precise setting with a piezoelectric technology and an optimized auto-calibration program
Features
Auto-calibration for optimum conditions
Precise control performance and high dynamic response
Easy operation with fork-key pads and full text graphical LCD
Single and double acting
Low air consumption due to piezo electric microvalve
Pressure regulator built-in to eliminate variations in supply air pressure
Problem-free characteristics on a small actuator
High resistance against shock and vibration
Mounting on linear actuators according to IEC 534
Order Code for SSL (Linear Type)

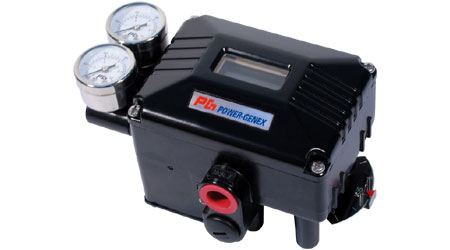

SSR (Rotary Type)
Introduction
Smartest valve control device meeting a dynamic performance and a precise setting with a piezoelectric technology and an optimized auto-calibration program
Features
Auto-calibration for optimum conditions
Precise control performance and high dynamic response
Easy operation with fork-key pads and full text graphical LCD
Single and double acting
Low air consumption due to piezo electric microvalve
Pressure regulator built-in to eliminate variations in supply air pressure
Problem-free characteristics on a small actuator
High resistance against shock and vibration
Mounting on rotary actuators according to VDI/VDE3845
Order Code for SSR (Rotary Type)

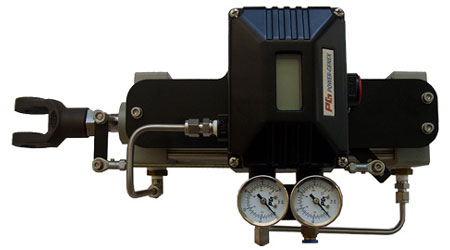

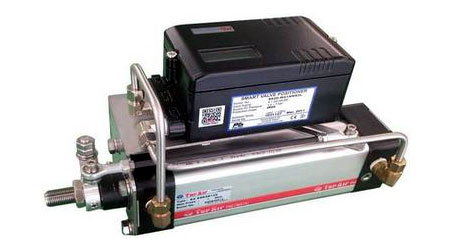

SS2-Cylinder
Introduction
Smart performance with innovative and ever-strong coil module even under harsh working environments
Features
Easy and quick auto-calibration
Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
Providing error messages against performance failures
Possible to test the actuator with any fixed signal under a test mode
Wide operating temperature range -30 ~ +80
![](./images/+c.gif)
Low air consumption
Order Code for SS2-Cylinder
SS-Cylinder
Introduction
Smartest valve control device meeting a dynamic performance and a precise setting with a piezoelectric technology and an optimized auto-calibration program
Features
Auto-calibration for optimum conditions
Precise control performance and high dynamic response
Easy operation with fork-key pads and full text graphical LCD
Single and double acting
Low air consumption due to piezo electric microvalve
Pressure regulator built-in to eliminate variations in supply air pressure
High resistance against shock and vibration
Order Code for SS-Cylinder

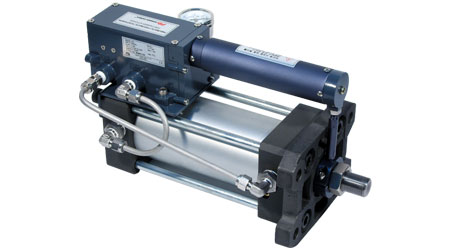

PPCL (3 - 15psi)
Introduction
pneumatic-pneumatic positioner ideally designed and optimized for cylinder actuator and guaranteeing precise and stable performance with cylinder actuator
Features
Easy to set
Compact
Precise and stable performance
Suitable for a wide application
Order Code for PPCL (3 - 15psi)
EPCL (4 - 20mA)
Introduction
Electro-pneumatic positioner ideally designed and optimized for cylinder actuator and guaranteeing precise and stable performance with cylinder actuator
Features
Easy to set
Compact
Precise and stable performance
Suitable for a wide application
Order Code for EPCL (4 - 20mA)

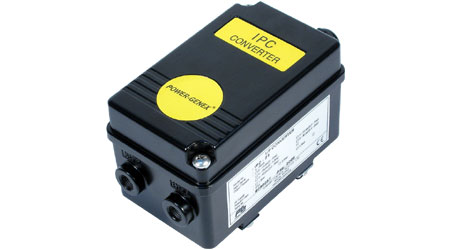

IPC
Introduction
Dynamic valve drive to convert 4~20
![](./images/+ma.gif)
current signal to pneumatic output pressure with state-of-the art piezoelectric technology
Features
Rugged aluminum die-cast housing
Precise control performance and high dynamic response
Simple and easy to set
Low air consumption due to piezo electric microvalve
Order Code for IPC
Output pressure | Required supply air | Part Number |
0 - 1bar (0 - 15psi) | 1.5 bar (23psi) | IPC - 01 |
0.2 - 1bar (3 - 15psi) | 1.5 bar (23psi) | IPC - 21 |
0.4 - 2bar (6 - 30psi) | 2.5 bar (38psi) | IPC - 42 |
0.2 - 3bar (3 - 45psi) | 3.5 bar (53psi) | IPC ? 23 |
Other Pressure | - | On request |

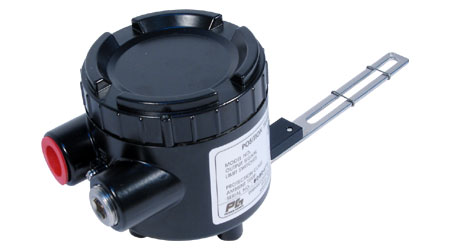

PTP(analog)
Introduction
Explosion proof position transmitter for reliable valve position feedback with 4-20
![](./images/+ma.gif)
output signal
Features
Rugged aluminum die-cast housing
Optional 2 X SPDT limit switch or 2 X P&F proximity sensor NJ2-V3-N
Order Code for PTP(analog)

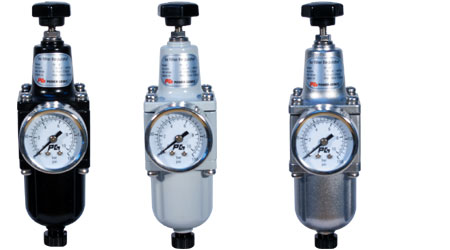

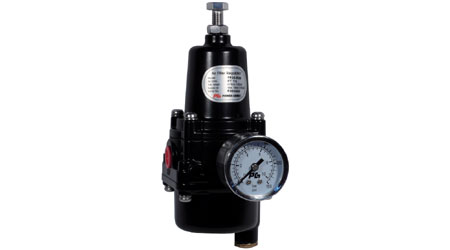

FR20
Introduction
Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators
Features
Rugged aluminum die-cast housing
Excellent tability and rpeatability
Stable setting pressure
High capacity with 5 micron filter
Self-relief function to balance output and setting pressures
High flow capacity
Order Code for FR20
FR10/30
Introduction
Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators
Features
Rugged aluminum die-cast housing
Optional stainless steel 316 housing
Stable setting pressure
High capacity with 5 micron filter
Self-relief function to balance output and setting pressures
High flow capacity
Order Code for FR

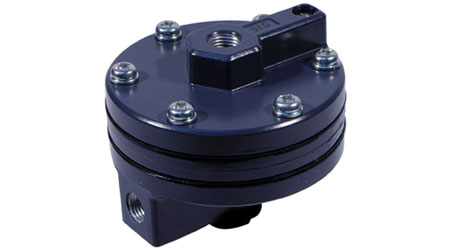

AVB
Introduction
Strong valve activator to increase actuator speed or decrease loss of supply air coming from a distance by supplying a larger flow capacity
Features
Rugged aluminum die-cast housing
High flow capacity
Order Code for AVB

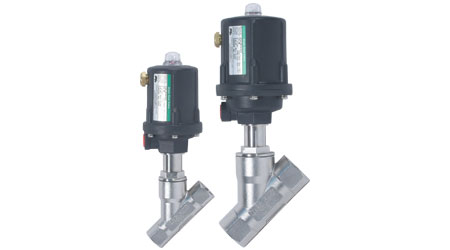

PG3
Features
Spring return closed or open, double-acting
Stainless steel valve body standard (316SS)
High flow rate
Optical visual indication
Low control air consumption due to minimized volume in the actuaor
Proportional plug on repuest
Optional mechanical switches,proximity sensors, solenoid valve, valve positioner, stroke limiter and manual override device
Order Code for PG3
LU
Introduction
Dependable safety valve to retain a set supply air pressure and guarantee a steady process control when a supply air is suddenly failed by accident and its pressure becomes lower than a set pressure
Features
Rugged aluminum die-cast housing
Order Code for LU
ESV-S (Single Coil)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
Rugged aluminum die-cast housing
Convertible from 5/2 way to 3/2 way
Rotatable valve head for optimal mounting
Direct NAMUR mounting or screw mounting
Order Code for ESV-S (Single Coil)
ESV-SS (Single Coil)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
Stainless steel 316 valve body
Convertible from 5/2 way to 3/2 way
Rotatable valve head for optimal mounting
Direct NAMUR mounting or screw mounting
Order Code for ESV-SS (Single Coil)
ESV-D (Dual Coil)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
Rugged aluminum die-cast housing
Convertible from 5/2 way to 3/2 way
Rotatable valve head for optimal mounting
Direct NAMUR mounting or screw mounting
Order Code for ESV-D (Dual Coil)
ESV-DS (Dual Coil)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
Rugged aluminum die-cast housing
Convertible from 5/2 way to 3/2 way
Rotatable valve head for optimal mounting
Direct NAMUR mounting or screw mounting
Order Code for ESV-DS (Dual Coil)
ESV-3 (3/2WAY)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
Rugged aluminum die-cast housing
Rotatable valve head for optimal mounting
Direct NAMUR mounting or screw mounting
Order Code for ESV-3 (3/2WAY)
ESV-3S (3/2WAY)
Introduction
Explosion proof solenoid valve for a confident control in rough working environments
Features
Stainless steel 316 valve body
Rotatable valve head for optimal mounting
Direct NAMUR mounting or screw mounting
Order Code for ESV-3S (3/2WAY)
