    Metal seated Unidirectional Knife Gate Valve with Casting Yoke
    Model 100M
    Flow Direction Uni-direction
    Valve Size 2” ? 48” (50mm -1200mm)
    Design MSS SP-61, 81, ASME B16.34, ASME B16.5 class 150lb
    Raised face body tapped lugs in accordance with ANSI150, JIS10K, DIN PN10 and AS 2129 Table D & E
    Pressure Rating 150psi (10.3 bar) CWP , Over 30” 100 psi (6.89 bar)
    Shutoff MSS SP-81
    Body CF8, CF8M, CG3M, Duplex Stainless Steel, Special Alloy, NI-RESIST ASTM A439 TYPE-2, CS, WCB
    Gate 304,316 and Nickel based Non-Stick Overlay
    Seat Metal seated
    Packing *Standard PTFE impregnated syntax is 450°F (230°C)
    *High Temperature Square Braided Packing to 1000° F (540°C) pH Range: 4-10
    Actuator Options Hand Wheel, Bevel Gear, Pneumatic Cylinder, Electric Motor Lever, Ratchet and Chain Wheel.
    Advantage No material accumulated by stepped transition port
    Application Carbon Black , Chemical Slurries ,Coal Slurries, Copper Tailings, Detergent Powders , Fly ash Slurries
    General Mining Slurry, Hot & Dry Gases Iron, Ore Slurries, Magnetite Slurry , Sugar Mills, Polymer Chips,
    Pulp Stock, Slag Slurry, Water , Viscose Rayon, Molasses

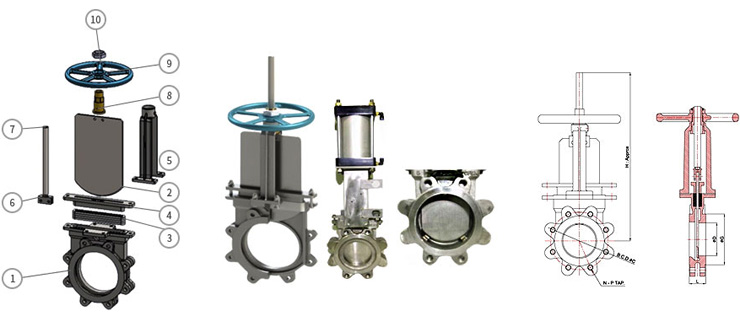

    No. PARTS Materials
    1 Body ASTM A351 CF8M/ CF8
    Seat ASTM A351 CF8M/ CF8
    2 Gate ASTM A240 SS316/ 304
    3 Packing PTFE
    4 Packing Gland ASTM A351 CF8M/ CF8
    5 Yoke ASTM A351 CF8
    6 Clevis ASTM A351 CF8
    7 Stem ASTM A276 SS304
    8 Stem Nut ASTM B36 Yellow Brass
    9 Hand Wheel Ductile Iron, ASTM A536
    10 Hand Wheel Nut Zinc Plated Carbon Steel
    Bolt ASTM A240 SS304
    Nut ASTM A240 SS304
    Washer ASTM A240 SS304
    SIZE L ØD ØG ØC N - P TAP H
    2" 47 48 92 120.5 4 x 5/8 - 11 350
    3" 50.8 76.2 127 152.5 4 x 5/8 - 11 435
    4" 50.8 101.6 157.5 190.5 8 x 5/8 - 11 520
    6" 57 152 216 241.5 8 x 3/4 - 10 655
    8" 70 203 270 298.5 8 x 3/4 - 10 865
    10" 70 254 324 362 12 x 7/8 - 9 1020
    12" 76 305 381 432 12 x 7/8 - 9 1180
    14" 76 343 413 476 12 x 1 - 8 1350
    16" 89 387.4 470 540 12 x 1 - 8 1530
    18" 89 438 533.5 578 16 x 1-1/8 -7 1710
    20" 114.3 479.4 584.5 635 20 x 1-1/8 -7 1910
    24" 114.3 574.7 692.5 749.5 20 x 1-1/4 -7 2170
