HSS
HSS

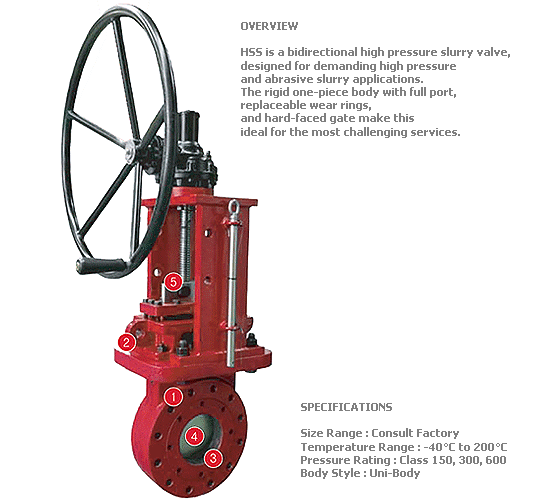

| NO. | Name | Description |
|---|---|---|
| 1 | BODY | Uni-Body design to eliminate the possibility of leakage between two bolted together body halves at extreme high-pressure. |
| 2 | PACKING | GFO multi-layer packing provide exceptional gland sealing. Inconel 600 scrapers and tungsten carbide weld overlayed wear rings provide the highest durability and operating temperature performance desired. |
| 3 | SEAT | Aflas, zero-leakage seat for Bi-Directional Isolation |
| 4 | GATE | 17-4PH ? H1025 Gate with Tungsten Carbide weld overlay on leading wear edges and gate tip |
| 5 | STEM & CLEVIS | Clevis design and horizontal bolting stabilizes gate ensuring proper alignment |

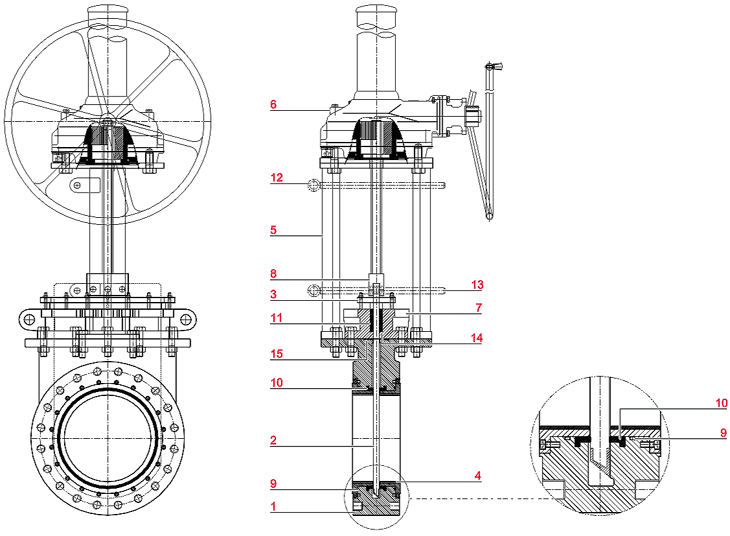

Parts Identification & Material Options
| Item | Name | Material Options |
|---|---|---|
| 1 | Body | Ni-Resist (A436 Gr.1) |
| 2 | Gate | 17-4PH H900 |
| 3 | Packing Follower | Ni-Resist (A436 Gr.1) |
| 4 | Seat-Ring | Ni-Resist (A436 Gr.1) |
| 5 | Yoke | A216 Gr. WCB |
| 6 | Bevel Gear | |
| 7 | Packing Chamber | Ni-Resist (A436 Gr.1) |
| 8 | Clevis | A351 Gr. CF8 |
| 9 | O-Ring | VITON |
| 10 | Resilient Seat | AFLAS |
| 11 | Packing | GFO Fiber |
| 12 | Lock Pin | A276 Gr 304 |
| 13 | Clevis Bolts | A276 Gr 304 |
| 14 | Scraper | Inconel 600 |
| 15 | Metal Jacket Gaskets | SS304 |
