ANSI CLASS 600
SERIES 88 600#
CLASS 300(ANSI B16.5)

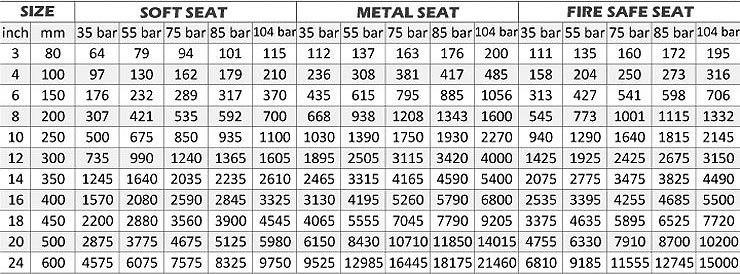

Torque Table
Torque shown do not include safety factor
All torque values in the table are for the wet media. If the media is dry, the torque should be 20%~30% greater than the figure in the table.
When the dynamic torque exceeds seating/unseating torque, the dynamic torque should be taken to size an actuator.
|
