ANSI CLASS 300
SERIES 88 300#

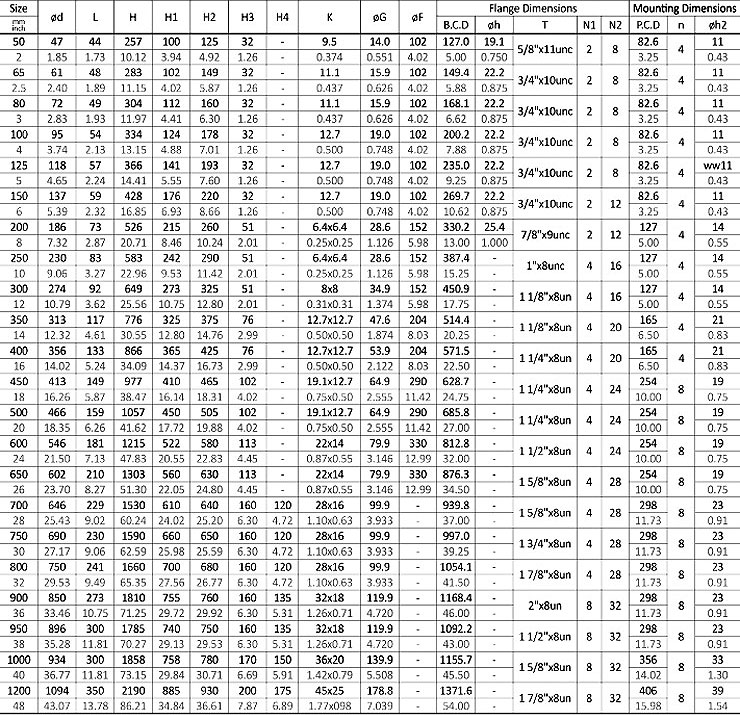

CLASS 300(ANSI B16.5, ANSI B16.47 SERIES A)
Dimensions are subject to change without notice. |

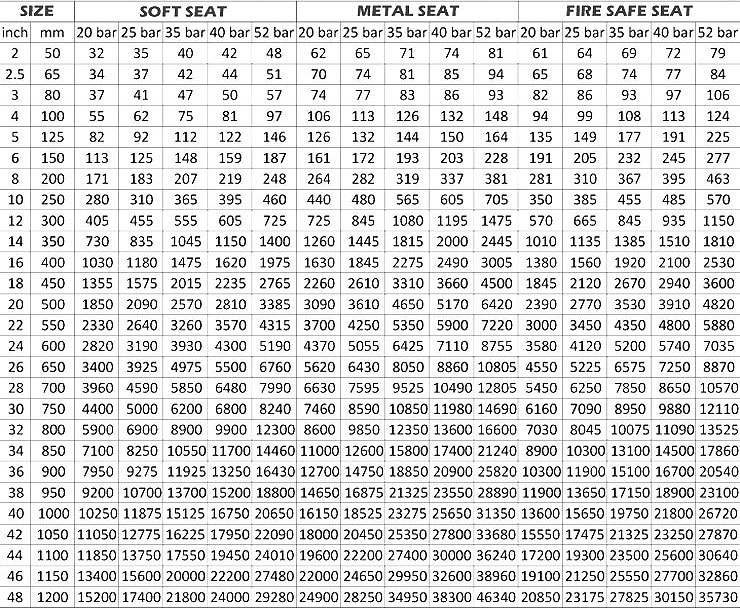

SEATING/UNSEATING TORQUE(Nm)
Torque shown do not include safety factor
All torque values in the table are for the wet media. If the media is dry, the torque should be 20%~30% greater than the figure in the table.
When the dynamic torque exceeds seating/unseating torque, the dynamic torque should be taken to size an actuator.
|
