110M
  • Manual Download
  • GA Drawings
  • Brochure Download
  • Inquiry
    • CWP 150 Single Cast Body
    Metal seated Unidirectional Knife Gate Valve
    Model 110M
    Flow Direction Uni-direction
    Valve Size 2” ? 48” (50mm -1200mm)
    Design MSS SP-61, 81, ASME B16.34, ASME B16.5 class 150lb
    Raised face body tapped lugs in accordance with ANSI150, JIS10K, DIN PN10 and AS 2129 Table D & E
    Pressure Rating 150psi (10.3 bar) CWP , Over 30” 100 psi (6.89 bar)
    Shutoff MSS SP-81
    Body CF8, CF8M, CG3M, Duplex Stainless Steel, Special Alloy, NI-RESIST ASTM A439 TYPE-2, CS, WCB
    Gate 304,316 and Nickel based Non-Stick Overlay
    Seat Metal seated
    Packing *Standard PTFE impregnated syntax is 450°F (230°C)
    *High Temperature Square Braided Packing to 1000° F (540°C) pH Range: 4-10
    Actuator Options Hand Wheel, Bevel Gear, Pneumatic Cylinder, Electric Motor Lever, Ratchet and Chain Wheel.
    Advantage No material accumulated by stepped transition port
    Application Carbon Black , Chemical Slurries ,Coal Slurries, Copper Tailings, Detergent Powders , Fly ash Slurries
    General Mining Slurry, Hot & Dry Gases Iron, Ore Slurries, Magnetite Slurry , Sugar Mills, Polymer Chips,
    Pulp Stock, Slag Slurry, Water , Viscose Rayon, Molasses

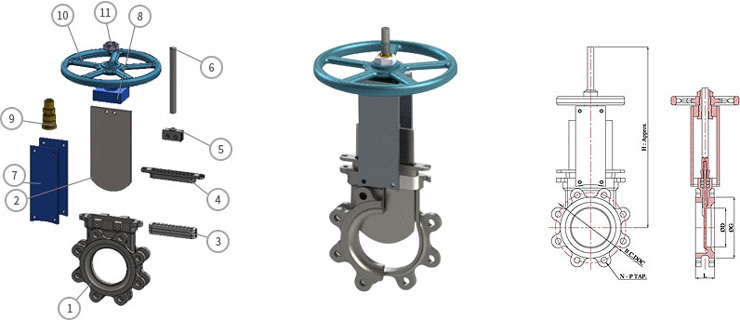

    No. PARTS Materials
    1 Body ASTM A351 CF8M/ CF8
    　 Seat ASTM A351 CF8M/ CF8
    2 Gate ASTM A240 SS316/ 304
    3 Packing PTFE
    4 Packing Gland ASTM A351 CF8M/ CF8
    5 Clevis ASTM A351 CF8
    6 Stem ASTM A276 SS304
    7 Yoke Legs ASTM A240 SS316/ 304
    Carbon Steel, ASTM A36, Coated
    8 Yoke Pad ASTM A240 SS316/ 304
    Carbon Steel ASTM A36 Coated
    9 Stem Nut ASTM B36 Yellow Brass
    10 Hand Wheel Ductile Iron, ASTM A536
    11 Hand Wheel Nut Zinc Plated Carbon Steel
    　 Bolt ASTM A240 SS304
    　 Nut ASTM A240 SS304
    　 Washer ASTM A240 SS304
    SIZE L ØD ØG ØC N - P TAP H
    2" 47.8 50 92 120.5 4 x 5/8 - 11 340
    3" 50.8 72 127 152.5 4 x 5/8 - 11 430
    4" 50.8 94 157.5 190.5 8 x 5/8 - 11 490
    6" 57.2 141 216 241.5 8 x 3/4 - 10 625
    8" 70 185 270 298.5 8 x 3/4 - 10 755
    10" 70 232 324 362 12 x 7/8 - 9 890
    12" 76 276 381 432 12 x 7/8 - 9 1010
    14" 76 303 413 476 12 x 1 - 8 1110
    16" 89 348 470 540 12 x 1 - 8 1265
    18" 89 390 533.5 578 16 x 1-1/8 -7 1390
    20" 114.3 434.4 584.5 635 20 x 1-1/8 -7 1550
    24" 114.3 522 692.5 749.5 20 x 1-1/4 -7 1780
