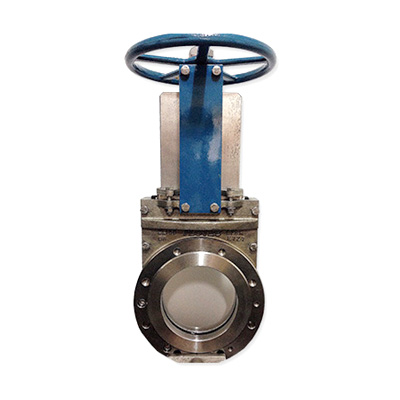

Knife Gate Valve
150TP -R
Class 150 Two Piece Body Bolted
High Pressure Resilient seated Bi-directional Knife Gate Valve
Resilient Seated Bi-directional Valve
High Pressure Resilient seated Bi-directional Knife Gate Valve
Resilient Seated Bi-directional Valve
| Model | 150TP-R |
|---|---|
| Flow Direction | Bi-directional |
| Valve Size | 2” ? 24” (50 mm ? 600 mm) |
| Design | MSS SP-61, 81, 135, ASME B16.34 , B16.5 class 150lb Raised face body tapped flange in accordance with ANSI150, JIS10K, DIN PN10 and AS 2129 Table D & E |
| Pressure Rating | 285(275) psi (19.6 bar) CL150 |
| Shutoff | Zero Leakage / MSSP-81 and 135 |
| Body | CF8, CF8M, CG3M, Duplex Stainless Steel, Special Alloy, NI-RESIST ASTM A439 TYPE-2, CS, WCB |
| Gate | 304,316 and Nickel based Non-Stick Overlay |
| Seat | Resilient Seated(EPDM, NBR, FKM) |
| Packing | *Standard PTFE impregnated syntax is 450°F (230°C) *High Temperature Square Braided Packing to 1000° F (540°C) pH Range: 4-10 |
| Actuator Options | Hand Wheel, Bevel Gear, Pneumatic Cylinder, Electric Motor Lever, Ratchet and Chain Wheel. |
| Advantage | Easy maintenance & Replaceable seat and Sleeves Zero Leakage with one-piece perimeter & chest seal |
| Application | Isolation of interconnected slurry pumping lines, Air / Gas tight applications, High-pressure slurry handling, General bi-directional / reverse pressure isolation duties for a wide range of media, Erosive and abrasive applications, Mining and ore processing, Flying Ash Handling, Coal washeries, Vacuum applications. |
| No. | PARTS | Materials |
|---|---|---|
| 1 | Body | ASTM A351 CF8M/ CF8 |
| 2 | Seat | EPDM, NBR, FKM(VITON) |
| 3 | Seat Sleeves | Urethane |
| 4 | Gate | ASTM A240 SS316/ 304 |
| 5 | Packing | PTFE |
| 6 | Packing Gland | ASTM A351 CF8M/ CF8 |
| 7 | Clevis | ASTM A351 CF8 |
| 8 | Stem | ASTM A276 SS304 |
| 9 | Yoke | ASTM A240 SS316/ 304 Carbon Steel, ASTM A36, Coated |
| 11 | Stem Nut (Sleeves) | ASTM B36 Yellow Brass |
| 12 | Yoke Pad | ASTM A240 SS316/ 304 Carbon Steel ASTM A36 Coated |
| 13 | Trust Needle Bearing (6” ? 24”) |
Carbon Steel |
| 14 | Hand Wheel | Ductile Iron, ASTM A536 |
| 15 | Hand Wheel Nut | Zinc Plated Carbon Steel |
| 16 | Stopper Nut | ASTM A276 SS304 |
| Bolt | ASTM A240 SS304 | |
| Nut | ASTM A240 SS304 | |
| Washer | ASTM A240 SS304 |
