Slide Knife Gate Valve
100S-M

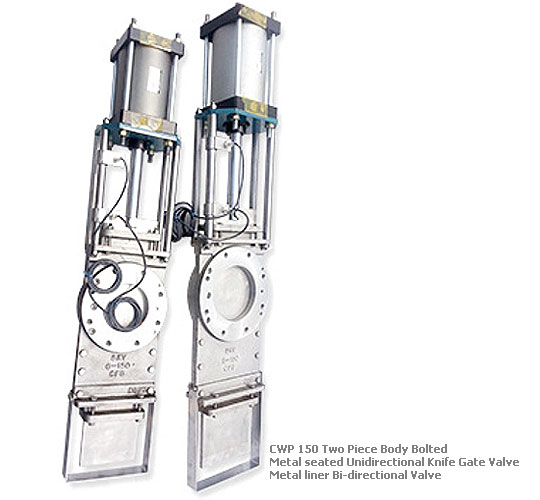

CWP 150 Two Piece Body Bolted
Metal seated Unidirectional Knife Gate Valve
Metal liner Bi-directional Valve
Metal seated Unidirectional Knife Gate Valve
Metal liner Bi-directional Valve
| Model # | 100S-M | 100S-MO |
|---|---|---|
| Flow Direction | Bi-directional | |
| Valve Size | 2” ? 24” (50 mm ? 600 mm) | |
| Design | MSS SP-61, 81, ASME B16.5 Raised face body tapped flange in accordance with ANSI150, JIS10K, DIN PN10 and AS 2129 Table D & E Pressure Rating 150psi (10.3 bar) CWP , Over 30” 100 psi (6.89 bar) |
|
| Shutoff | MSSP-81 | Zero Leakage |
| Body | CF8, CF8M, CG3M, Duplex Stainless Steel, Special Alloy, NI-RESIST ASTM A439 TYPE-2, CS, WCB | |
| Gate | 304,316 and Nickel based Non-Stick Overlay | |
| Packing | *Standard PTFE impregnated syntax is 450°F (230°C) *High Temperature Braided Packing to 1000° F (540°C) pH Range: 4-10 |
|
| Actuator Options | Hand Wheel, Bevel Gear, Pneumatic Cylinder, Electric Motor Lever, Ratchet and Chain Wheel. | |
| Advantage | Easy maintenance & Replaceable seat and Sleeves Zero Leakage with one-piece perimeter & chest seal |
|
| Application | Isolation of interconnected slurry pumping lines, slurry handling, General bi-directional Erosive and abrasiveapplications. | |
